RLN8-410

If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice.

• ● Pre-installed 2TB HDD for 24/7 recording and monitoring.
• ● Support all cameras recording at the same time (up to 8 cameras).
• ● If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
• ● Allow you to install an external hard disk drive via e-SATA for more storage (up to 6TB).

• Pre-installed 2 TB Seagate HDD
• Up to 8 Cameras
• Up to 6 TB External HDD

Customize Your Own Security Camera System

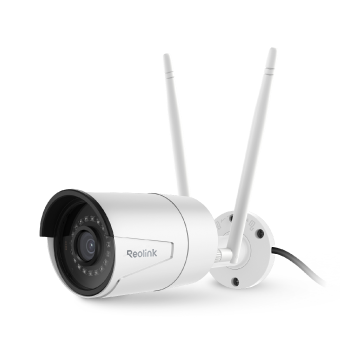

Reolink RLN8-410 8-channel PoE NVR works perfectly with all our IP cameras – including 16MP, 12MP, 8MP, 5MP and 4MP PoE/WiFi cameras - for 24/7 recording, live views and more features. Apart from this NVR, you can choose up to 8 cameras to build your own video surveillance system.

* The Reolink NVRs are designed for Reolink security cameras ONLY.

IP66 Certified Weatherproof

With Audio (Mic) (Optional)

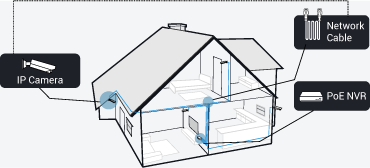

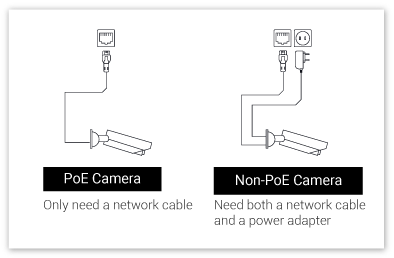

PoE — Easy Setup & Real Plug and Play

A real plug and play network video recorder! This RLN8-410 NVR features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts.

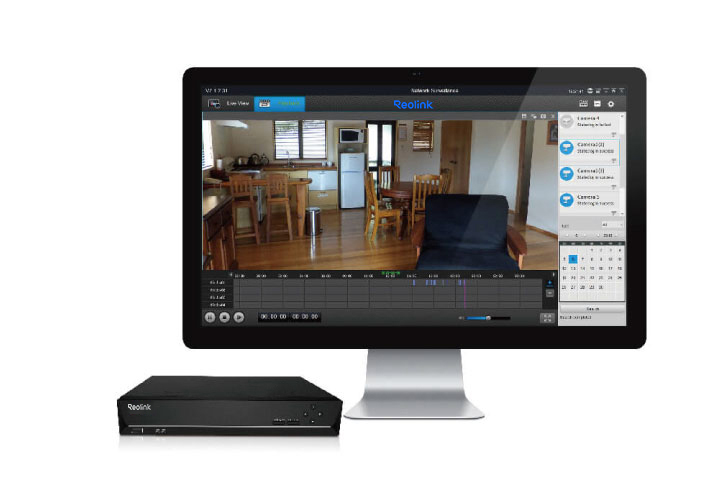

Local and Remote Access & Control

For local access and control

Connect the system to a monitor or an HD TV.

For remote access and control

Use free Reolink App on a mobile device, Reolink Client on a computer or via web browsers.

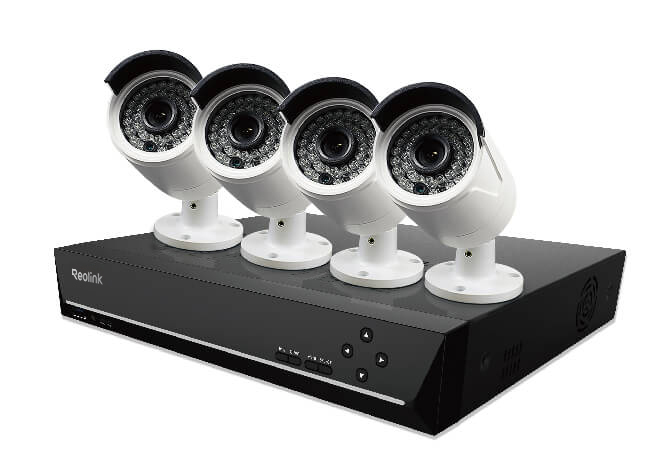

More Features

Use this NVR with Reolink PoE cameras and you can get a professional, reliable and DIY security camera system. You can play back any recorded video, back up local data, and do more. For more features, refer to RLK8-810B4-A NVR security system.

Comparison

What's in the Box What’s in the Box & Setup Guide (with Video) What's in the Box

Comparison

Gallery & Specs

Specifications

Download as PDF

Hardware

Hardware

Video/Audio Input

IP Video Input

PoE IP Camera x 8

Audio Input

Cameras with built-in mic

Video/Audio Output

HDMI Output Resolution

3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

VGA Output Resolution

1920x1080, 1280x1024, 1280x720, 1024x768

Audio output

Decoding

Video Format

Live View / Playback Resolution

7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p

Synchronous Playback

Up to 4 channels

HDD

SATA

1 x SATA interface (1 x 2TB HDD included)

External HDD

1 eSATA Interface for HDD

Capacity

Up to 12TB (max. 6TB capacity for each HDD)

External Interface

USB Interface

Network Interface

• 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN

• 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port

Supported Standard

Network

Network Protocols

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browsers Supported

Edge, Firefox, Chrome, Safari

OS Supported

PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply

Power Consumption

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
